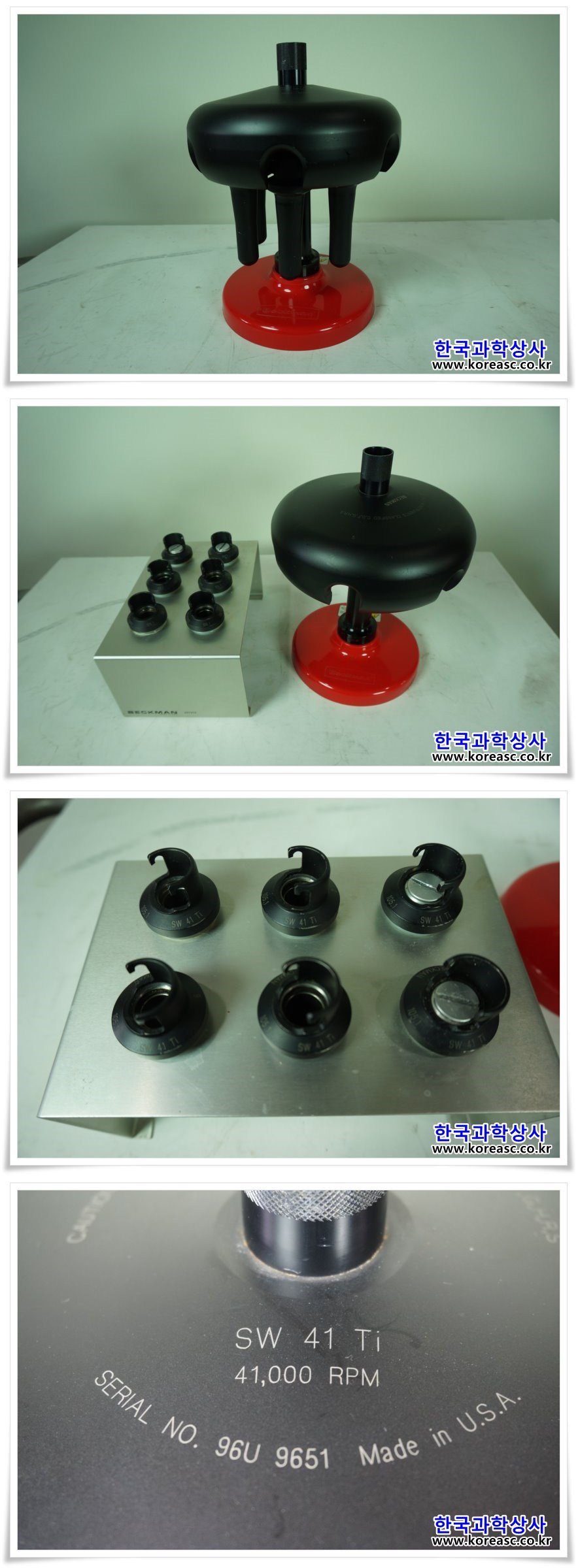

SW 41 Ti Rotor, Swinging Bucket, Titanium, 6 x 13.2 mL, 41,000 rpm, 288,000 x g. The SW 41 Ti, rated for 41 000 rpm, is a swinging bucket rotor designed to centrifuge up to six tubes. Used in Beckman Coulter class H, R, and S preparative ultracentrifuges, the rotor develops centrifugal forces for the separation and purification of small particles. Typical applications include separation of RNA, proteins, and subcellular particles in solution using rate zonal centrifugation. Approximate sample volume per tube is 13.2 mL or 79.2 ml per run with all six buckets topped off.
W 41 Ti Rotor Swinging Bucket Titanium Specifications:
Rotor Type
Ultra – Swinging Bucket
Maximum Speed
41,000 rpm
Maximum RCF at r max (g)
288,000 x g
k-Factor
124
Rotor Material
Titanium
Bucket Material
Titanium, Anodized Aluminum Cap
r min
67.4 mm
r av
110.2 mm
r max
153.1 mm
Nominal Rotor Capacity
79.2 mL
Number of Rotor Cavities x Nominal Largest Load Capacity
6 x 13.2 mL
Nominal Largest Container/Bucket/Carrier/Canister Dimensions
