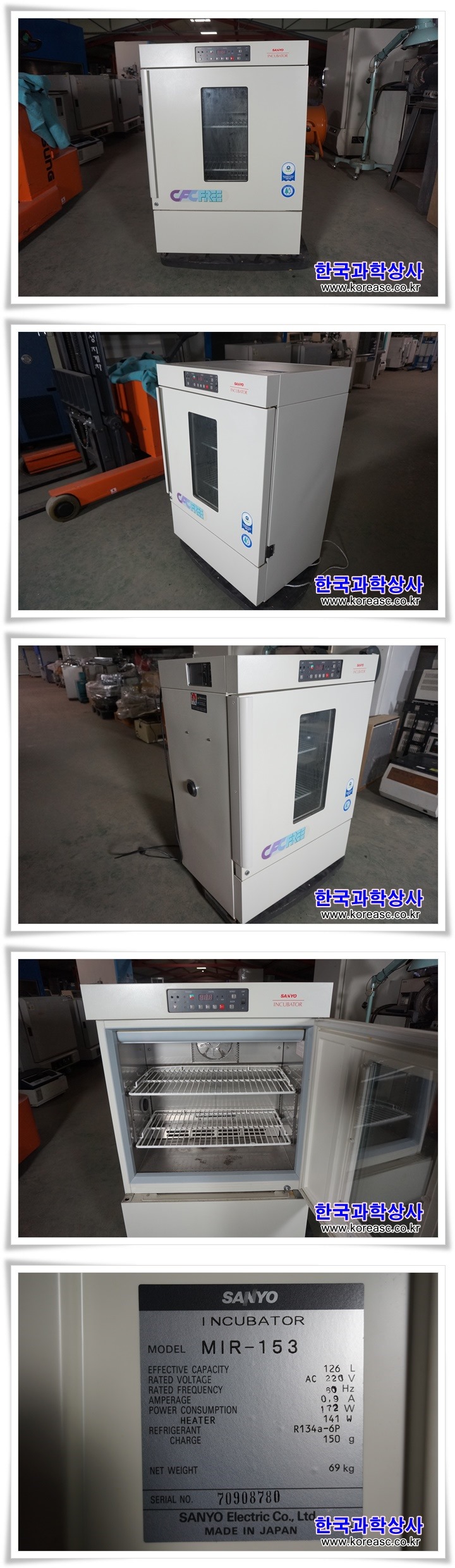

1x SANYO Electric Biomedical Co., Ltd., MIR-153, Incubator Description • Incubator (with refrigerator) • External size size Width 700 x Length 580 x High 1018 (mm) • Inside dimension size Width 620 x Length 386 x High 555 (mm) • Effective internal volume 126 liters • Machine weight (product mass) 69 kg • Cooling heating system Forced circulation formula • Power supply Single phase 220 V 50/60 Hz • Refrigerant R134a-6p • Overheating supercooling regulator Electronic overheat prevention set temperature 15 ~ 55 ℃ • Overcool prevention setting temperature -15 to + 20 ° C • Program operation mode 3 steps 1 to 99 times Repetition or continuous return 1 step 0.5 h to 99.5 h • Fluorescent lamp 15W 1 piece • In-vessel temperature range -10 ° C to + 50 ° C • Internal temperature distribution ± 0.5 ° C (setting 37 ° C ambient temperature 20 ° C no load) • Temperature adjustment range For ON-OFF control ± 1 ° C (Setting 5 ° C Ambient temperature 20 ° C no load) • ± 0.2 ° C for PID control • Temperature lowering speed 50 ℃ → 0 ℃ about 86 minutes • Temperature rise rate 0 ℃ -> 50 ℃ About 70 minutes
