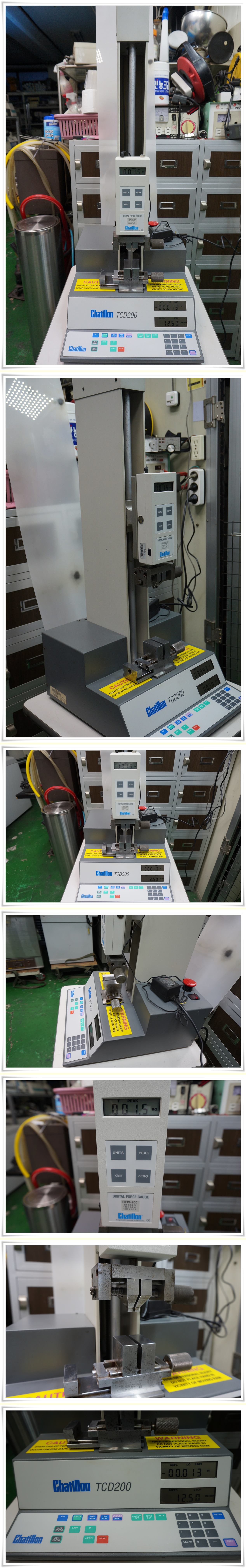

CHATILLON TCD200 MOTORIZED TEST STANDS 인장강도계 판매합니다
상태양호
연락처 : 010-5354-6248
Features:
Digital control with programming capability
Bi-directional RS232 interface
Digital deflection set point capability
Cycling capabilities: programmable up to 1000 cycles between digital deflection set points or force set points when used with a Chatillon DFGS digital force gauge
Ball screw drive with dynamic braking
Manually adjustable upper and lower travel limits
Vertical travel distance: 0-18" x 0.001" (0-457.2 mm x 0.01 mm)
Travel speed: programmable 0.5 - 12.5 x 0.01 inches/min (12.7 to 317.5 x 0.1 mm/min)
2-1/4" (57 mm) horizontal clearance between platform centerline and column
Standard mounting for Chatillon DFS, DFS-R, DFS-R-ND, DFGS, and DFIS gauges. Click here to view Test Stand and Force Gauge compatibility chart.
Options:
50" (1270 mm) column (18" travel)
Slow speed: 0.02 to 0.5 inches/min (0.5 to 12.77 mm/min)
Medium slow speed: 0.1 to 2.5 inches/min (2.5 to 62.5 mm/min)
Medium High Speed: 1 - 25 x 0.1 inches/min (25 - 635 x 1 mm/minute)
High speed: 2 to 50 x 0.1 inches/min (50 to 1270 x 1 mm/min)
