Product data for medium- to high-throughput sample disruption for molecular analysis:

Convenient and secure disruption process

Adapter sets optimized for high-throughput disruption

Wide range of accessories available

Reproducible results with difficult-to-lyse tissues

Front-end solution for QIAGEN automation

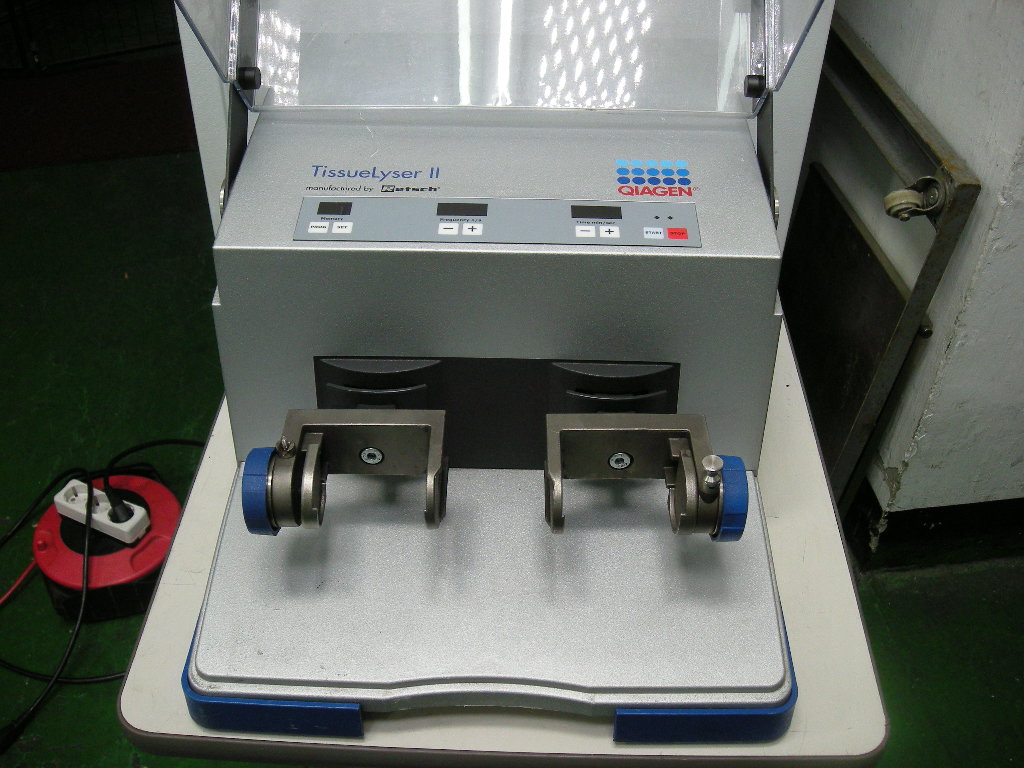

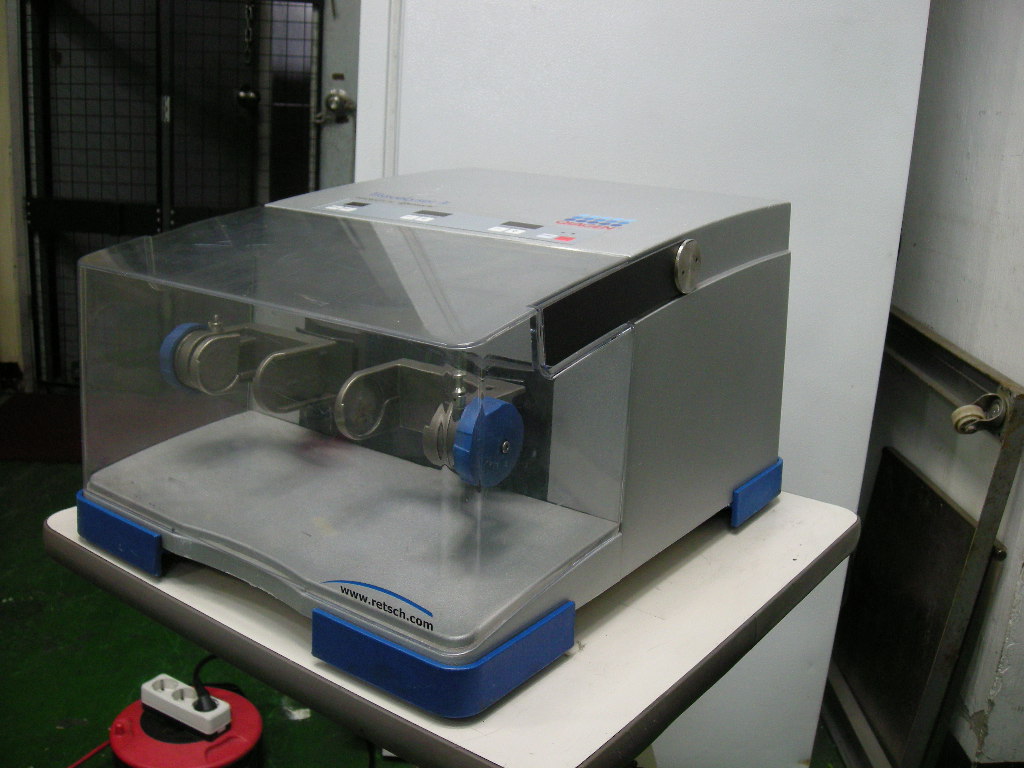

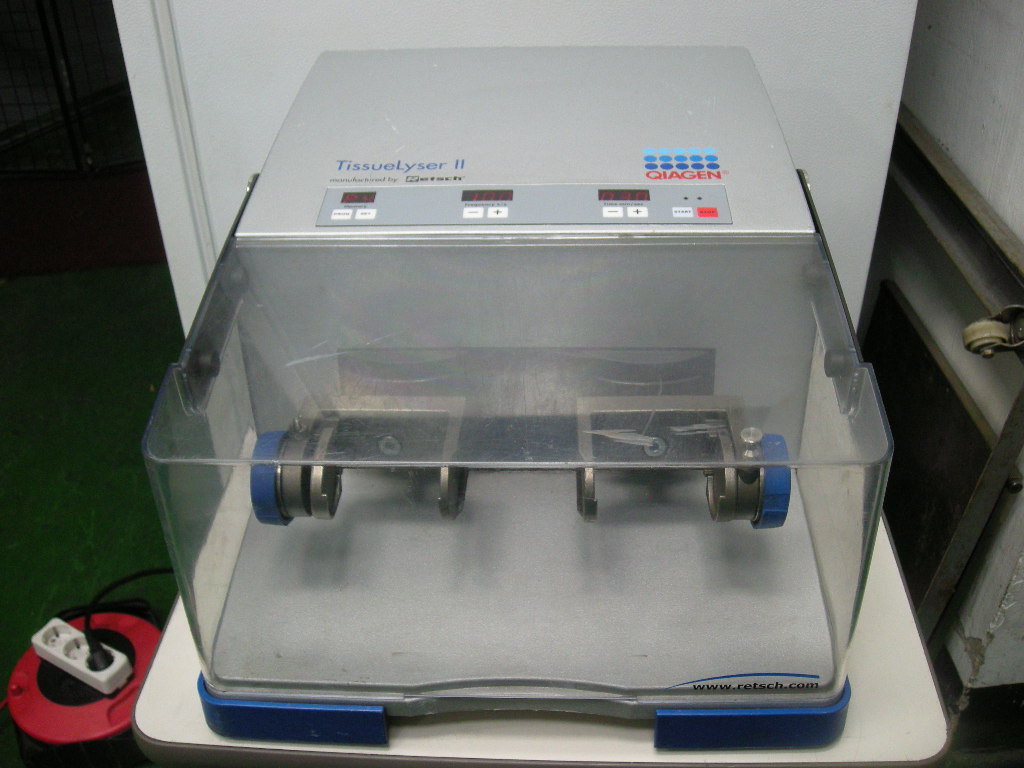

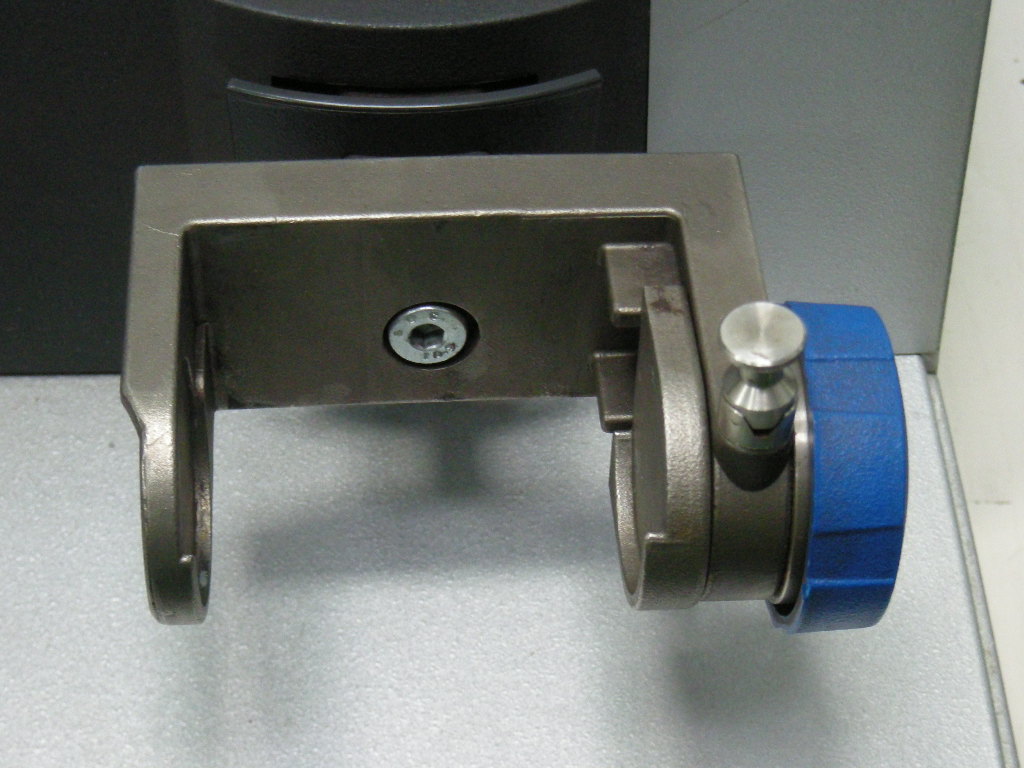

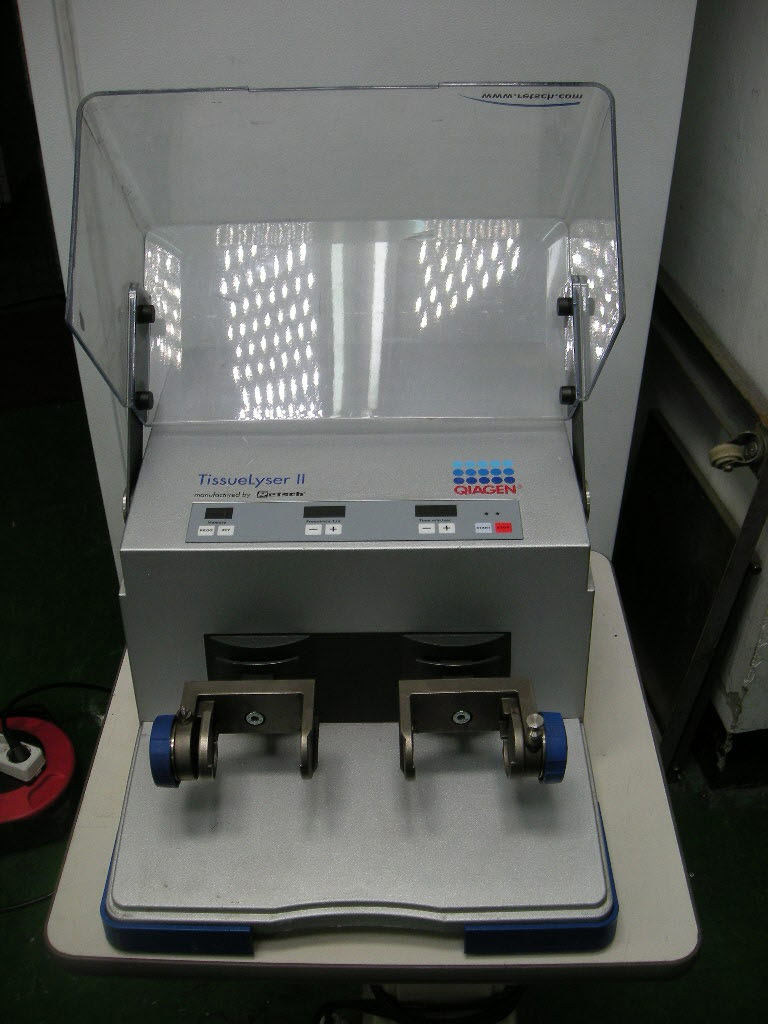

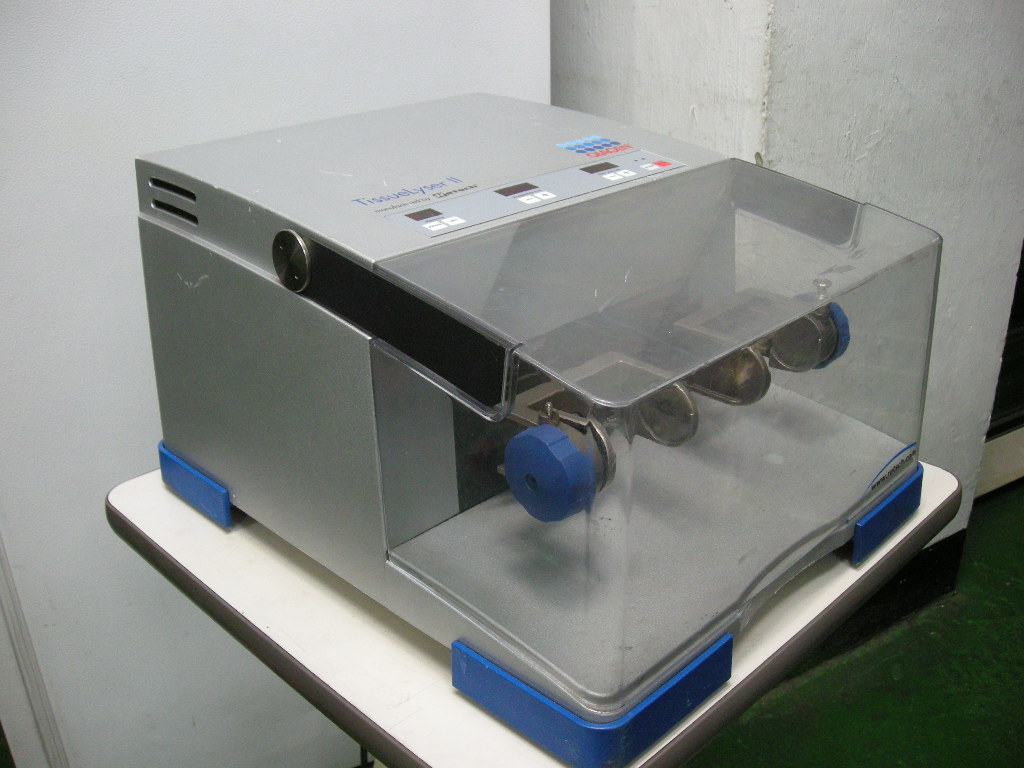

The TissueLyser II simultaneously disrupts multiple biological samples through high-speed shaking in plastictubes with stainless steel, tungsten carbide, or glass beads. Using the appropriate adapter set, up to 48 or 192samples can be processed at the same time. Alternatively, a grinding jar set can be used to process largesamples. A range of beads, bead dispensers, and collection microtubes and caps are also available. Allaccessories for the TissueLyser II, including adapter sets, are also compatible with the TissueLyser

Technical data

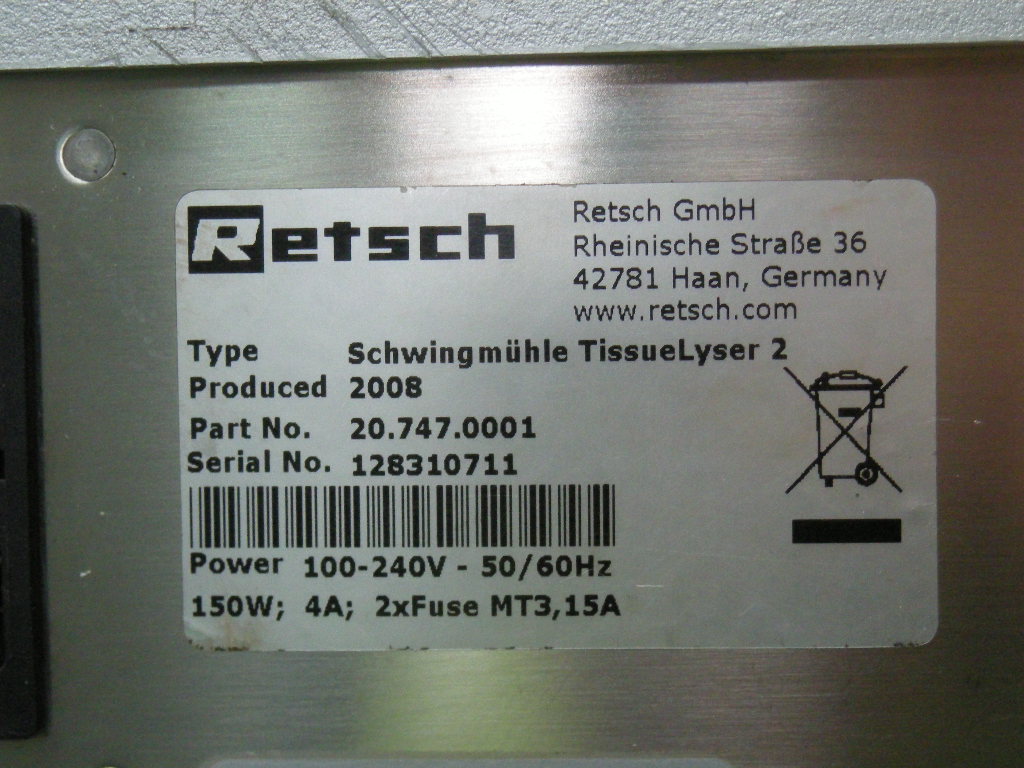

Operating conditions: Power 100–240 V AC, 50–60 Hz, 150 W

Mechanical data

Dimensions Height: 266 mm (up to 524 mm with the hood raised)

Width: 371 mm

Depth: 461 mm

Oscillation frequency 3–30 Hz

Noise characteristic values

Sound power level LWA = 71.4 dB(A)

Emission value related to workplace L pAeq = 61 dB(A)

Mass Approx. 26 kg (without TissueLyser Adapter Set or Grinding
